Flint’s SmoothAir – Wall Cooling
Wall Mount Precision Cooling in KSA & UAE
Compact. Outdoor-Ready. Energy Efficient.
With its compact and weatherproof construction, all-in-one prefabricated design, and factory testing, Flint’s SmoothAir Wall Mount Precision Cooling ensures reliable and sustainable operation even in harsh outdoor conditions. Available in direct and indirect free cooling configurations, it maximizes energy efficiency while saving valuable IT space with wall and roof mount compatibility.
Advanced Green Efficiency Free Cooling Platform
During low outdoor temperatures, switches to free cooling mode, using outdoor air for cooling without compressors. It significantly reduces energy consumption and operational costs.

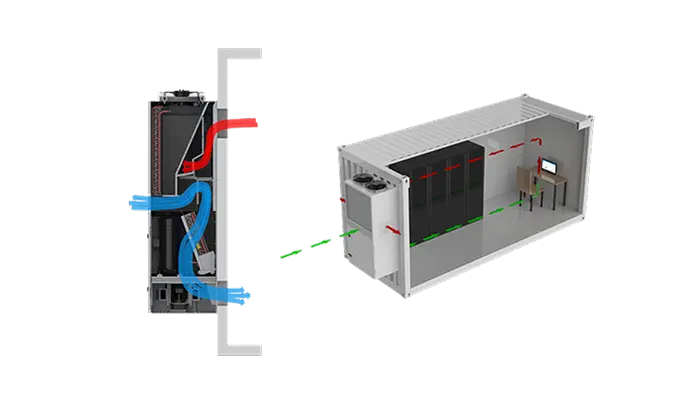

Direct Free Cooling with Hybrid Free Air Technology
- Achieves PUE as low as 1.1.
- Compatible with both wall-mount and top-mount systems.
- Simplified installation with automatic mode switching.

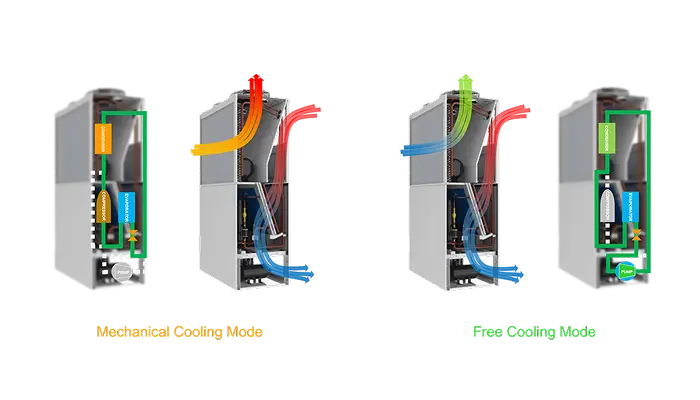

Indirect Free Cooling with Refrigerant Pump Technology
- Achieves PUE as low as 1.2.
- Zero water consumption in free cooling mode.
- No water loop inside server rooms, eliminating flooding concerns.
- Indirect system prevents dust and moisture ingress.
- Automatic mode switching with minimal maintenance requirements.
High Flexibility
- Self-contained design ensures easy transportation and rapid deployment.
- Tailored for telecom shelters and modular container data centers.

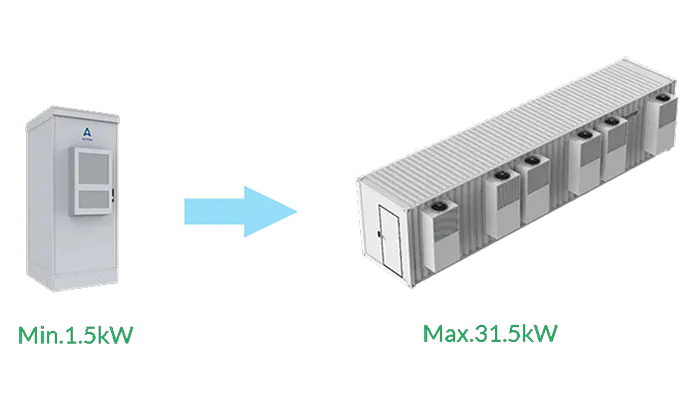

- Wide range of cooling capacities available to meet diverse project needs.
Searching for One-Stop Cooling Products for Your MDC?
Contact Us Now to discuss Flint SmoothAir Wall Mount Precision Cooling Solutions in KSA & UAE.
Sustainable Energy Efficiency
- Built with world-leading components for maximum reliability.
- Inverter compressor & EC fan with intelligent controls deliver precise temperature regulation.

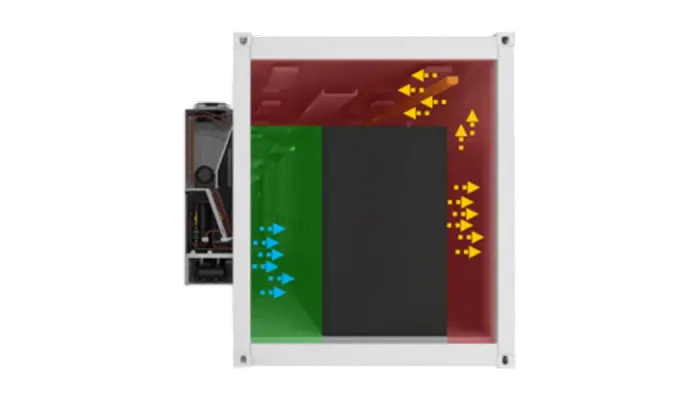

- Compatible with hot and cold aisle containment systems for enhanced efficiency.
- Optional direct and indirect free cooling configurations to further minimize energy use.
- Optional 48VDC standby module for fan, controller, and free cooling system — ensuring continuous air circulation during power loss.
Intelligent Control System
- Smart digital control with real-time sensor data and adaptive logic.
- Flexible adjustment based on on-site working conditions.
- 1000+ alarm records plus 7-day pressure & temperature curve history.
- Full protocol support: Web/SNMP/Modbus/BACnet/Email/Dry Contact/IPv6.
- Teamwork modes: Master/Slave, Master Control, Force Working.
- Built-in web server for desktop & mobile monitoring and control.
Key Components
Inverter Compressor
- Dynamically adjusts system capacity based on heat load.
- Saves energy during partial loads.
- Operates in ambient conditions up to 55°C with R134a refrigerant option.
EC Fans
- Precisely adjusts airflow to match heat loads.
- Energy-efficient with variable speed control.
Electronic Expansion Valve (EEV)
- Maintains refrigerant flow at peak efficiency.
- Reduces compressor and pump power consumption.

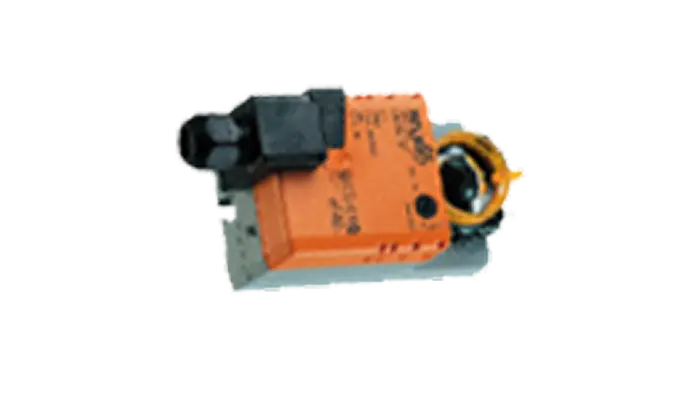

Dynamic Actuator
- Intelligent controller balances component output in real time.
- Ensures stable and optimized system performance.
